Fault indication VN/87plus

Fault indication VN/87plus

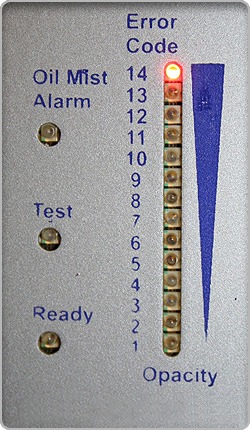

Fault indication on LED- display

Click on fault indication link to view maintenance procedure

– Negative pressure/ airflow too low!

Step 1

Turn off the pressure regulator..



remove the plug at the inspection cover..



install the digital manometer..





turn up the pressure until it reaches 60 mmH2O..



the LED 14 will stop blinking, and

the OMD will go back to ready mode



If this does not help, do as follows..



Open the inspection cover..



replace both scavenging air filter (10042) and circlips (10041)

(do not clean the filters!!)



close the inspection cover



If this does not help, do as follows..



Open the inspection cover..



use the «cleaning needle» (10135) and put it into the hole at the right side and the left side..



close the inspection cover.



If this does not help, do as follows..



Remove the measuring head housing..



check the seal for measuring head. If damaged, change the seal (10022)



check both flexible bellows under the vibration damp plate. If it is damaged, change the flexible bellows (10023) .



If this does not help, do as follows..



Disconnect the ejector input..



clean the unit with clean spray for OMD..



reinstall the ejector input.



If this does not help, do as follows..



Disconnect the ejector output..



clean the unit with clean spray for OMD..



reinstall the ejector output.



If this does not help, do as follows..

Replace measuring head housing and electronic module.

Use our ExP for this procedure

– Optical sensor dirty!

Open the inspection cover..



the infrared filter glasses are dirty..



clean the glasses (10035) with a cotton stick (10036) and alcohol.





Close the inspection cover.



If this does not help, do as follows..

Replace measuring head housing and electronic module.

Use our ExP for this procedure

Voltage of internal battery too low!

Push the reset button..

If this does not help, do as follows..

Exchange measuring head. Part no. 708266

– Ambient temperature too low!

Engine compartment ventilator blows cold air into the device& change blowing direction of ventilator away from the OMD.

If this does not help, do as follows..

Exchange measuring head.
Use our ExP for this procedure.

– ambient temperature above 70 C°

Protect device against sources of heat radiation & install scavenging air set.

If this does not help, do as follows..

Exchange measuring head.

Use our ExP for this procedure

– electronic temperature below 0 C°

Check if engine room ventilator blows air directly at the OMD device & Change blowing direction of the ventilator to ensure that cold air is not directed to the OMD device.

If this does not help, do as follows..

Exchange measuring head.

Use our ExP for this procedure

– Electronic temperature too high!

  1. Remove or turn away ambient heating components.

  2. Install metal heat shields against radiation.

  3. Improve fresh air circulation.

If this does not help, do as follows..

Exchange measuring head.

Use our ExP for this procedure

– RESET button defective

Step 1

Check if the reset button is blocked &

eliminate blocking.

If this does not help, do as follows

Exchange measuring head.

Use our ExP for this procedure

– Supply voltage too high!

Measure supply voltage between pin 1 and 2 The voltage has to be between 18 and 31,20 Vdc.

If this does not help, do as follows

Replace measuring head housing

and electronic module.

– Switch for adjusting sensitivity defective!

Exchange measuring head.

Use our ExP for this procedure

– Infrared sensor track defective

Step 1

Open the inspection cover..



the infrared filter glasses are dirty..



clean the glasses with a cotton

stick (10036) and alcohol (10035)





Close the inspection cover.



If this does not help, do as follows..

Exchange measuring head.

Use our ExP for this procedure

– Airflow sensor defective!

Exchange measuring head.

Use our ExP for this procedure

– Electronic module defective!

Exchange measuring head.

Use our ExP for this procedure

– Electronic module defective!

Exchange measuring head.

Use our ExP for this procedure

Remove the reset task house..



the voltage between pin 1 &; 2

(18- 26 Vdc)..



remove the measuring head housing





replace the fuse (2A)



If this does not help, do as follows

Exchange measuring head.

Use our ExP for this procedure
