VN2020 Kits
| Pos: | Part name: | Part no. / Kit no.: |
| 1 | Inspection cover | – |
| 2 | Inspection cover gasket | 155004, 155006 |
| 3 | Measuring head | 290057 |
| 4 | Lithium battery | 155004 |
| 5 | Fuse | 436515 |
| 6 | Connection casing | 290070 |
| 7 | Connection casing gasket | 155004 & 155006 |
| 8 | Ejector in-/output system | 290070 |
| 9 | Terminal box incl. measuring head cable | 290043 |
| 10 | Base plate | 290070 |
| 11 | Measuring head gasket | 155004 & 155006 |
| 12 | Flexible bellow | 155004 |
| 13 | Pressure regulator | 273440 |
| 14 | Filter element | 155004 & 155006 |
| 15 | Flexible scavenging hose system | 290070 |
| 16 | Upper- & lower suspension | 155004 |
Main components:
Oil mist detector VN2020
Part no.: 290070EXP – Exchange complete oil mist detector VN2020
- Old/defect unit to be returned to Engine Protection Partner AS in repairable condition.
Part no.: 290070 – Complete oil mist detector VN2020
Measuring head VN2020
Part no.: 290057EXP – Exchange measuring head VN2020
- Old/defect unit to be returned to Engine Protection Partner AS in repairable condition.
Part no.: 290057 – Measuring head VN2020
Maintenance kits:

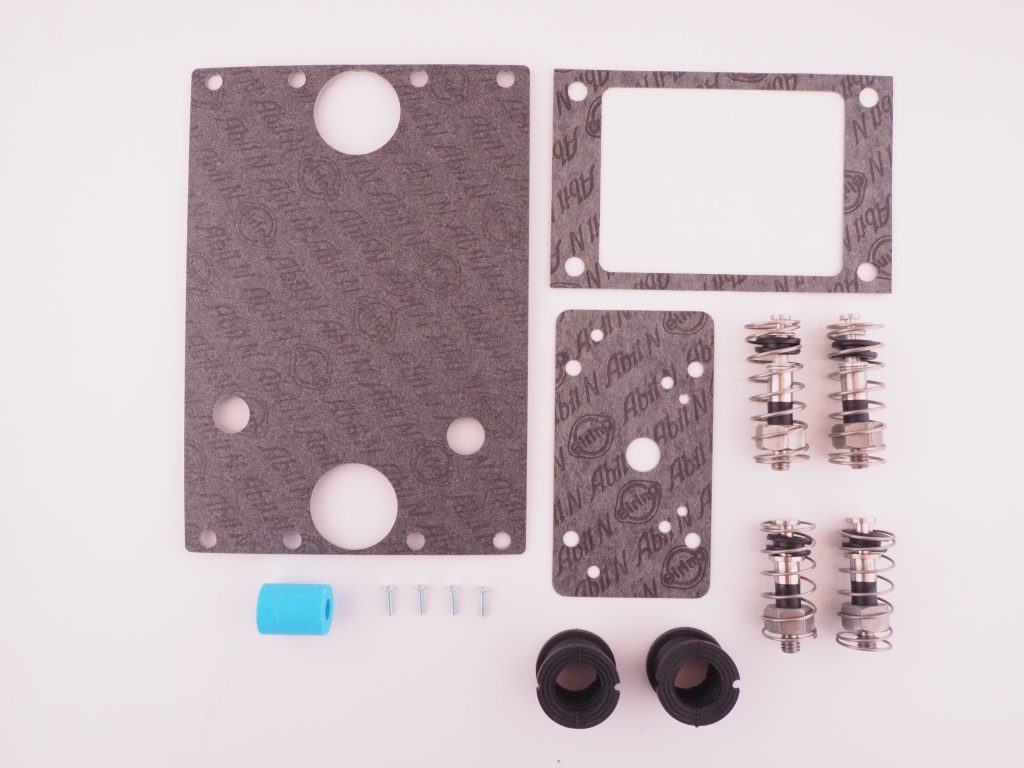

155004 – Service kit for VN2020
Parts:
1 x Inspection cover gasket
1 x Measuring head gasket
1 x Connection casing gasket
1 x Pressure regulator filter
2 x Flexible bellow
2 x Upper suspension
2 x Lower suspension
4 x Flexible bellow ring screw
1 x Lithium battery
155006 – Maintenance kit for VN2020
Parts:
3 x Inspection cover gasket
1 x Measuring head gasket
1 x Connection casing gasket
4 x Pressure regulator filter
151482 – Cleaning kit for Oil Mist Detector
Parts:
1 x Part no.: 10035 – Cleaning fluid
20 x Part no.: 10036 – Cotton sticks
1 x Part no.: 10135 – Cleaning needle
151780 – Smoke test kit
Parts:
6 x Smoke ampulla
1 x Pump
1 x Connection tube for VN301plus
1 x Connection tube for inspection cover
1 x Connection tube for pipe system
100138 – Digital u-tube manometer for Oil Mist Detector
Parts:
1 x Digital u-tube manometer
1 x Connection hose
1x Quick connection adapter
Optional kits:
151906 – Service-box VN2020
Parts:
4 x Part no.: 366717 – Pressure regulator filter
4 x Part no.: 356952 – Inspection cover gasket
2 x Part no.: 356950 – Connection box gasket
2 x Part no.: 356951 – Measuring head gasket
2 x Part no.: 200211 – Upper suspension
2 x Part no.: 200212 – Lower suspension
2 x Part no.: 365193 – Flexible bellow
4 x Part no.: 480824 – Cyl. screw ISO 10642 – M3 x 12 – 8.8
1 x Part no.: 200548 – Analog manometer
1 x Part no.: 270089 – Bottle of slacked water
6 x Part no.: 450420 – Smoke ampulla
1 x Part no.: 450421 – Hand pump
1 x Part no.: 270493 – Quick connection
1 x Part no.: 366786 – Connection QS-G1/4-10
1 x Part no.: 270705 – Hose length 100mm / ø10mm
1 x Part no.: 185303 – Manual smoke tube
Modification kits:
273440 – Pressure regulator modification kit
Parts:
1 x Pressure regulator
1 x Mounting plate
1 x Flexible tube
1 x Solid tube
