Schaller Automation

VN 215/87 EMC Kits

Download page as PDF
Pos:Part name:Part no.:Kit no.:
1Heating element10671-270765Sold separately
2Measuring head10801R, 10801EXPSold separately
3Scavenging air filter10042-365197100152-151485, 151481
4Inspection cover10798-270412Sold separately
5Inspection cover gasket11070-355336100152-151485
6Plug R1/4”10083Sold separately
7Plug R1/4” gasket10082Sold separately
8Scavenging air filter circlip10041-365198100152-151485, 151481
9Pipe connection adapter10430Sold separately
10Rubber sleeve10411100152-151485
11Lock plug10412100152-151485
12Clamp plate10409Sold separately
13Valve box10402RSold separately



14Screw R1/2”10208Sold separately
15Screw R1/2” gasket10209-365280Sold separately
16Scavenging air set10798Sold separately
17Pipe connection10408Sold separately
18Flexible bellow10023-365193100152-151485
19Upper suspension10018-200211100152-151485
20Measuring head gasket10022-330482100152-151485
21Lower suspension10019-200212100152-151485
22Oil mist gasket10407100152-151485
23Valve box gasket10405-330721100152-151485
24Oil return gasket10406100152-151485
25Connection socket10033Sold separately
26Base plate10708RSold separately



Main components:

Oil mist detector VN 215/87 EMC

Part no.: 10800EXP – Exchange complete oil mist detector VN 215/87 EMC

  • Old/defect unit to be returned to Engine Protection Partner AS in repairable condition.



Part no.: 10800R –     Reconditioned complete oil mist detector VN 215/87 EMC

Measuring head VN 215/87 EMC

Part no.: 10801EXP – Exchange measuring head VN 215/87 EMC

  • Old/defect unit to be returned to Engine Protection Partner AS in repairable condition.



Part no.: 10801R –     Reconditioned measuring head VN 215/87 EMC

Main connection socket VN/87 EMC

Part no.: 10033 – Main connection socket VN/87 EMC

Maintenance kits:

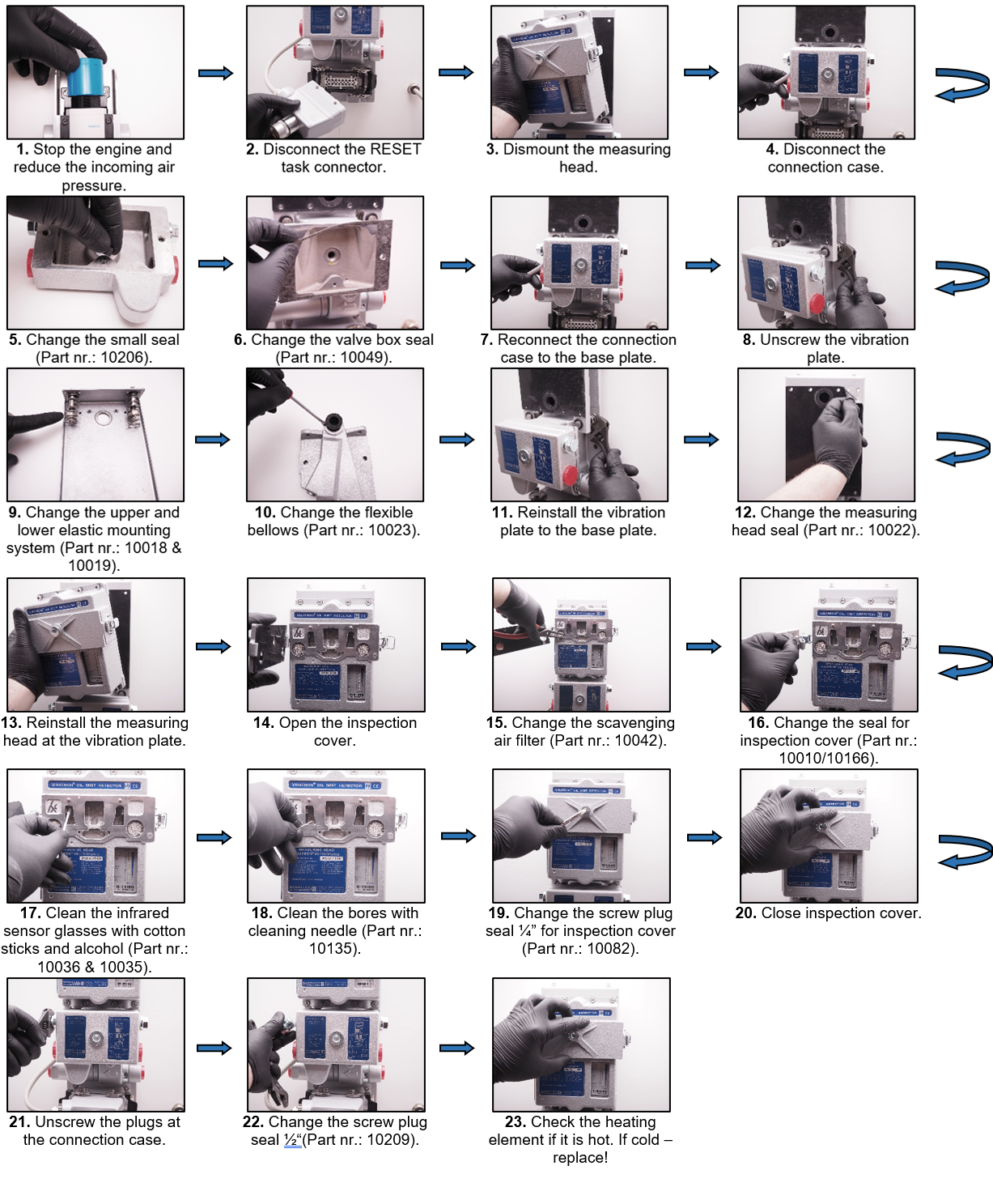

100152-151485 – Service kit for VN 215/87 series

Parts:

2 x Part no.: 10042 – Fresh air filter

2 x Part no.: 10041 – Fresh air filter circlip

2 x Part no.: 10023 – Flexible bellow

1 x Part no.: 10022 – Measuring head gasket for VN/87

1 x Part no.: 10166 – Inspection cover gasket for VN/87

3 x Part no.: 10562 – Air-jet pump gasket

2 x Part no.: 10018 – Upper suspension

2 x Part no.: 10019 – Lower suspension

1 x Part no.: 10405 – Connection casing gasket

1 x Part no.: 10406 – Oil return gasket

1 x Part no.: 10407 – Oil mist gasket

2 x Part no.: 10411 – Rubber sleeve

5 x Part no.: 10412 – Lock plug

1 x Part no.: 10003 – O-ring 9,0×4,5 NBR872

1 x Part no.: 10004 – O-ring 8,0×2,572 NBR872

1 x Part no.: 10679 – O-ring 4,0×1,75 NBR70

1 x Part no.: 155005 – Pressure regulator filter (new type)

1 x Part no.: 10002 – Pressure regulator filter (old type)

Instructions

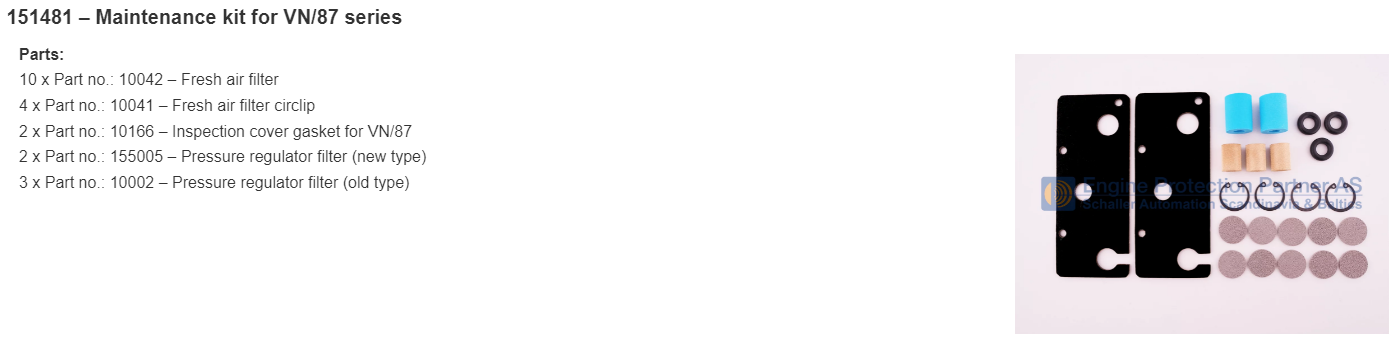

151481 – Filter kit for VN/87 EMC & plus

Parts:

10 x Part no.: 10042 – Fresh air filter

4 x Part no.: 10041 – Fresh air filter circlip

2 x Part no.: 10166 – Inspection cover gasket for VN/87

3 x Part no.: 10003 – O-ring 9,0×4,5 NBR872

2 x Part no.: 155005 – Pressure regulator filter (new type)

3 x Part no.: 10002 – Pressure regulator filter (old type)

Material declaration
Download Kit information

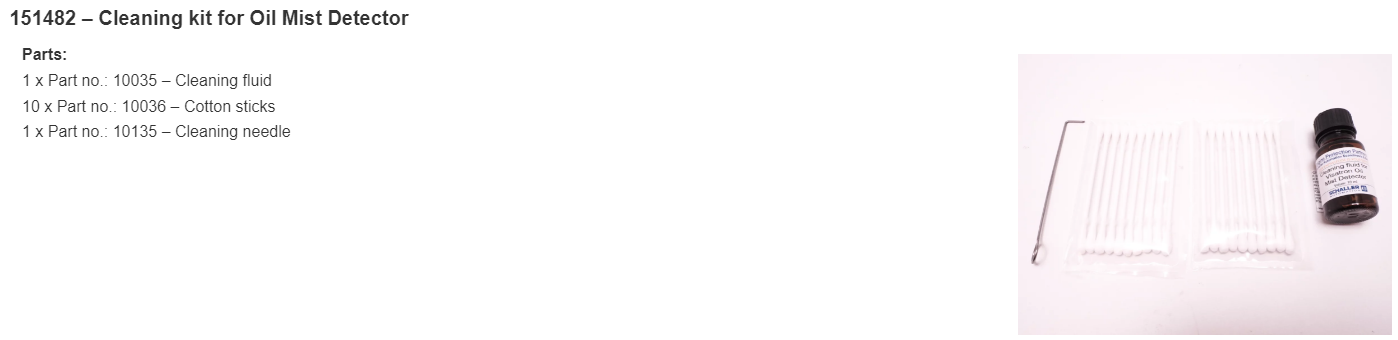

151482 – Cleaning kit for Oil Mist Detector

Parts:

1 x Part no.: 10035 – Cleaning fluid

20 x Part no.: 10036 – Cotton sticks

1 x Part no.: 10135 – Cleaning needle

Material declaration
Download Kit information
Instructions

151780 – Smoke test kit

Parts:

6 x Smoke ampulla

1 x Pump

1 x Connection tube for VN301plus

1 x Connection tube for inspection cover

1 x Connection tube for pipe system

100138 – Digital u-tube manometer for Oil Mist Detector

Parts:

1 x Digital u-tube manometer

1 x Connection hose

1x Quick connection adapter

Material declaration
Download Kit information

Optional kits:

11072 – Test plate kit for functional test of Oil Mist Detector

Parts:

1 x 10% glass

1 x Test plate

Material declaration
Download Kit information

1090-115 – Screw kit for repair

Parts:

1 x Plug 1/4″

2 x Plug 1/2″

4 x Screws for safety ring

2 x Screws for connection casing

2 x Washers for connection casing

Modification kits:

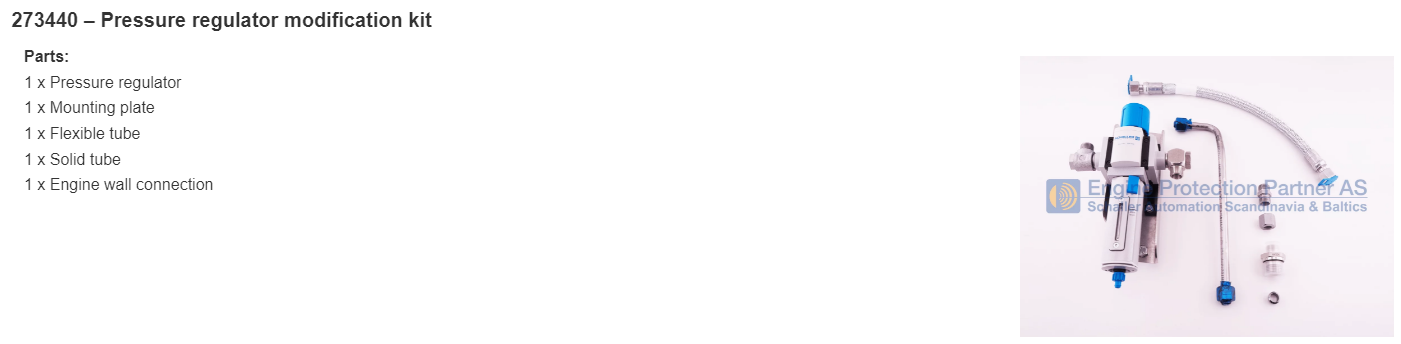

273440 – Pressure regulator modification kit

Parts:

1 x Pressure regulator

1 x Mounting plate

1 x Flexible tube

1 x Solid tube

1 x Engine wall connection

Material declaration
Download Kit information
