VN 115/93 Kits

Pos: Part name:Part no.:Kit no.:
1Measuring head11201, 11201R, 11201EXPSold separately
2Scavenging air filter10042 – 365197100153-151489, 151490
3Inspection cover gasket11180 – 355576100153-151489, 151490
4Inspection cover10798 – 270412Sold separately
5Plug R1/4”10083100153
6Plug R1/4” gasket10082100153
7Fresh air restrictor10992100153-151489, 151490
8Screw R1/2”10208Sold separately
9Screw R1/2” gasket10209 – 365280100153
10Connection casing11232 – 11232RSold separately
11Mounting plate10991Sold separately
12Measuring head gasket10969 – 355321100153-151489
13Flexible bellow10023 – 365193100153-151489
14Fresh air bellow10990100153-151489
15Oil mist seal10206 – 360136100153-151489
16Valve box gasket10405 – 330721100153-151489
17Connection socket10905Sold separately
18Base plate10904 – 10904RSold separately


Main components:

Oil mist detector VN 115/93

Part no.: 11200EXP – Exchange complete oil mist detector VN 115/93

  • Old/defect unit to be returned to Engine Protection Partner AS in repairable condition.



Part no.: 11200R –     Reconditioned complete oil mist detector VN 115/93

Measuring head VN 115/87plus

Part no.: 11201EXP – Exchange measuring head VN 115/93

  • Old/defect unit to be returned to Engine Protection Partner AS in repairable condition.



Part no.: 11201R –     Reconditioned measuring head VN 115/93

Main connection socket VN/93

Part no.: 10905 – Main connection socket VN/93

Maintenance kits:

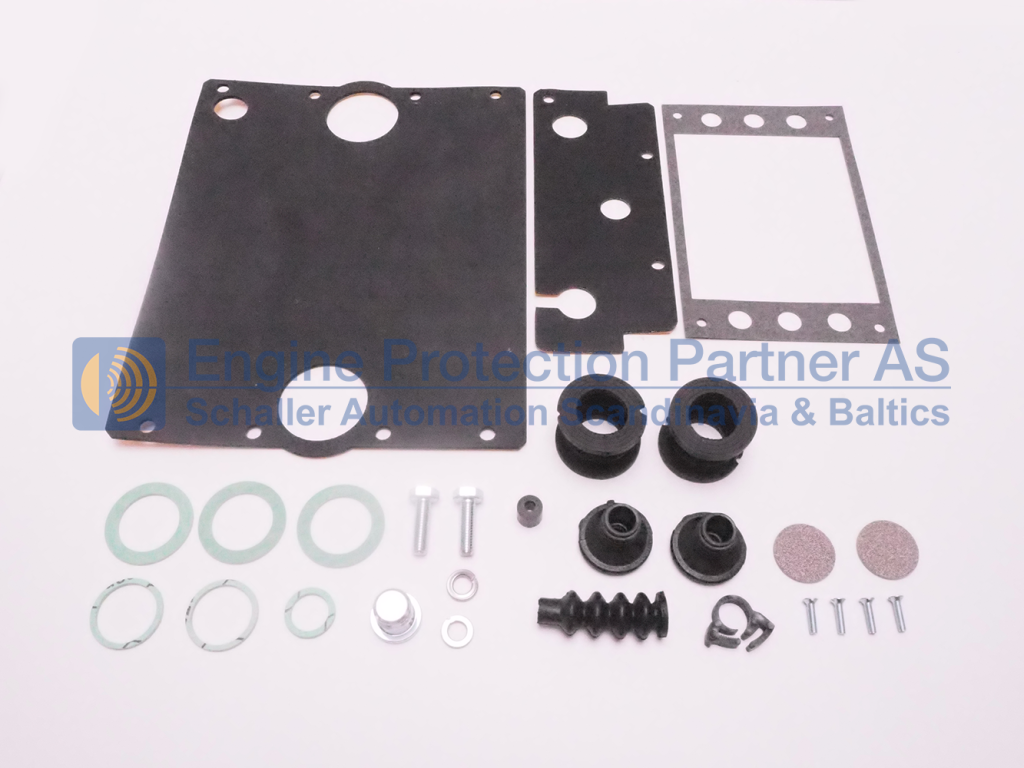

100153 – Yearly maintenance kit for VN 115/93

Kit to be used annually for maintenance.

Parts:

2 x Part no.: 10042 – Fresh air filter

2 x Part no.: 10992 – Fresh air restrictors

2 x Part no.: 10023 – Flexible bellow

1 x Part no.: 10969 – Measuring head gasket for VN/93

1 x Part no.: 11180 – Inspection cover gasket for VN/93

3 x Part no.: 10562 – Air-jet pump gasket

1 x Part no.: 10206 – Oil mist seal

1 x Part no.: 10990 – Fresh air bellow

1 x Part no.: 10405 – Connection casing gasket

2 x Part no.: 10209 – Screw R1/2″ gasket

1 x Part no.: 10083 – Plug R1/4″

1 x Part no.: 10082 – Plug R1/4″ gasket

2 x Screws for connection casing

2 x Washer for connection casing

4 x Screws for clamp ring

151490BU – Filter kit for VN/93 series

Parts:

10 x Part no.: 10042 – Fresh air filter

4 x Part no.: 10992 – Fresh air restrictors

2 x Part no.: 155005 – Pressure regulator filter (new type)

3 x Part no.: 10002 – Pressure regulator filter (old type)

3 x Part no.: 10003 – O-ring 9,0×4,5 NBR872

151490 – Spare part kit 11

Kit to be used on LNG vessels.

Parts:

10 x Part no.: 10042 – Fresh air filter

4 x Part no.: 10992 – Fresh air restrictors

2 x Part no.: 11180 – Inspection cover gasket for VN/93

2 x Part no.: 155005 – Pressure regulator filter (new type)

3 x Part no.: 10002 – Pressure regulator filter (old type)

3 x Part no.: 10003 – O-ring 9,0×4,5 NBR872

151482 – Cleaning kit for Oil Mist Detector

Parts:

1 x Part no.: 10035 – Cleaning fluid

20 x Part no.: 10036 – Cotton sticks

1 x Part no.: 10135 – Cleaning needle

151780 – Smoke test kit

Parts:

6 x Smoke ampulla

1 x Pump

1 x Connection tube for VN301plus

1 x Connection tube for inspection cover

1 x Connection tube for pipe system

100138 – Digital u-tube manometer for Oil Mist Detector

Parts:

1 x Digital u-tube manometer

1 x Connection hose

1 x Quick connection adapter

Optional kits:

11072 – Test plate kit for functional test of Oil Mist Detector

Parts:

1 x 10% glass

1 x Test plate

151489 – Spare part kit 10

Parts:

2 x Part no.: 10042 – Fresh air filter

2 x Part no.: 10992 – Fresh air restrictors

2 x Part no.: 10023 – Flexible bellow

1 x Part no.: 10969 – Measuring head gasket for VN/93

1 x Part no.: 11180 – Inspection cover gasket for VN/93

3 x Part no.: 10562 – Air-jet pump gasket

1 x Part no.: 10206 – Oil mist seal

1 x Part no.: 10990 – Fresh air bellow

1 x Part no.: 10405 – Connection casing gasket

1 x Part no.: 10003 – O-ring 9,0×4,5 NBR872

1 x Part no.: 10004 – O-ring 8,0×2,572 NBR872

1 x Part no.: 10679 – O-ring 4,0×1,75 NBR70

1 x Part no.: 155005 – Pressure regulator filter (new type)

1 x Part no.: 10002 – Pressure regulator filter (old type)

Modification kits:

273440 – Pressure regulator modification kit

Parts:

1 x Pressure regulator

1 x Mounting plate

1 x Flexible tube

1 x Solid tube

1 x Engine wall connection
