Wiring diagrams

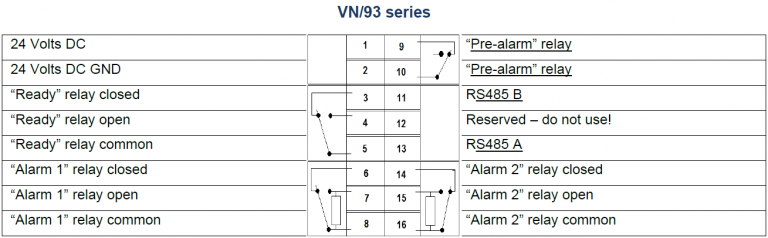

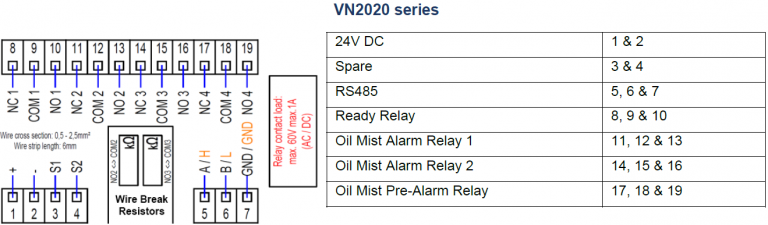

Below you will find the terminal box wiring diagrams for all the series of Visatron Oil Mist Detectors we provide.
