VN 116/87 EMC Kits

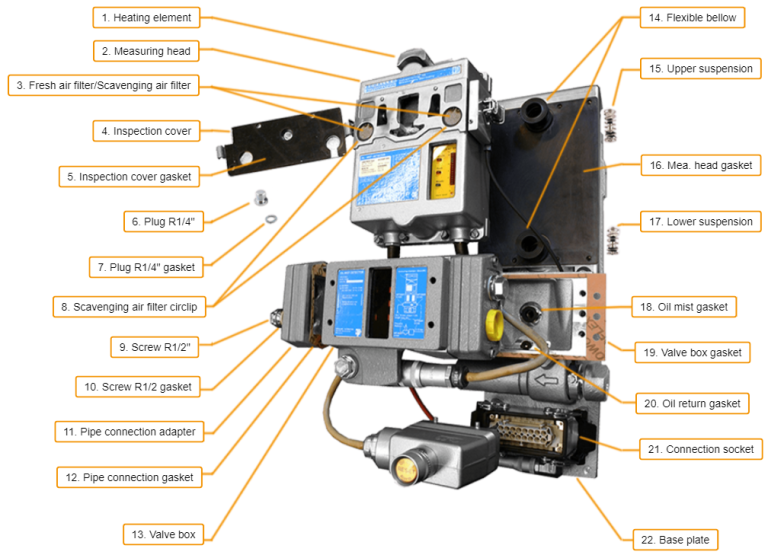

Pos: Part name:Part no.:Kit no.:
1Heating element10671 – 270765Sold separately
2Measuring head10701R, 10701EXPSold separately
3Scavenging air filter10042 – 365197100151-151484, 151481
4Inspection cover10798 – 270412Sold separately
5Inspection cover gasket11070 – 355336100151-151484, 151481
6Plug R1/4”10083100151
7Plug R1/4” gasket10082100151
8Scavenging air filter circlip10041 – 365198100151-151484, 151481
9Screw R1/2”10208Sold separately
10Screw R1/2” gasket10209 – 365280100151
11Pipe connection adapter10312Sold separately
12Pipe connection gasket10313100151-151484
13Valve box10302 – 10302RSold separately
14Flexible bellow10023 – 365193100151-151484
15Upper suspension10018 – 200211100151-151484
16Measuring head gasket10022 – 330482100151-151484
17Lower suspension10019 – 200212100151-151484
18Oil mist gasket10407100151-151484
19Valve box gasket10405 – 330721100151-151484
20Oil return gasket10406100151-151484
21Connection socket10033Sold separately
22Base plate10708 – 10708RSold separately



Main components:

Oil mist detector VN 116/87 EMC

Part no.: 10700EXP – Exchange complete oil mist detector VN 116/87 EMC

  • Old/defect unit to be returned to Engine Protection Partner AS in repairable condition.



Part no.: 10700R –     Reconditioned complete oil mist detector VN 116/87 EMC

Measuring head VN 116/87 EMC

Part no.: 10701EXP – Exchange measuring head VN 116/87 EMC

  • Old/defect unit to be returned to Engine Protection Partner AS in repairable condition.



Part no.: 10701R –     Reconditioned measuring head VN 116/87 EMC

Main connection socket VN/87 EMC

Part no.: 10033 – Main connection socket VN/87 EMC

Maintenance kits:

100151-151484 – Service kit for VN 116/87

Parts:

2 x Part no.: 10042 – Fresh air filter

2 x Part no.: 10041 – Fresh air filter circlip

2 x Part no.: 10023 – Flexible bellow

1 x Part no.: 10022 – Measuring head gasket for VN/87

1 x Part no.: 10166 – Inspection cover gasket for VN/87

3 x Part no.: 10562 – Air-jet pump gasket

2 x Part no.: 10313 – Tube connection for VN116 gasket

2 x Part no.: 10018 – Upper suspension

2 x Part no.: 10019 – Lower suspension

1 x Part no.: 10405 – Connection casing gasket

1 x Part no.: 10406 – Oil return gasket

1 x Part no.: 10407 – Oil mist gasket

1 x Part no.: 10003 – O-ring 9,0×4,5 NBR872

1 x Part no.: 10004 – O-ring 8,0×2,572 NBR872

1 x Part no.: 10679 – O-ring 4,0×1,75 NBR70

1 x Part no.: 155005 – Pressure regulator filter (new type)

1 x Part no.: 10002 – Pressure regulator filter (old type)

151481 – Filter kit for VN/87

Parts:

10 x Part no.: 10042 – Fresh air filter

4 x Part no.: 10041 – Fresh air filter circlip

2 x Part no.: 10166 – Inspection cover gasket for VN/87

2 x Part no.: 155005 – Pressure regulator filter (new type)

3 x Part no.: 10002 – Pressure regulator filter (old type)

3 x Part no.: 10003 – O-ring 9,0×4,5 NBR872

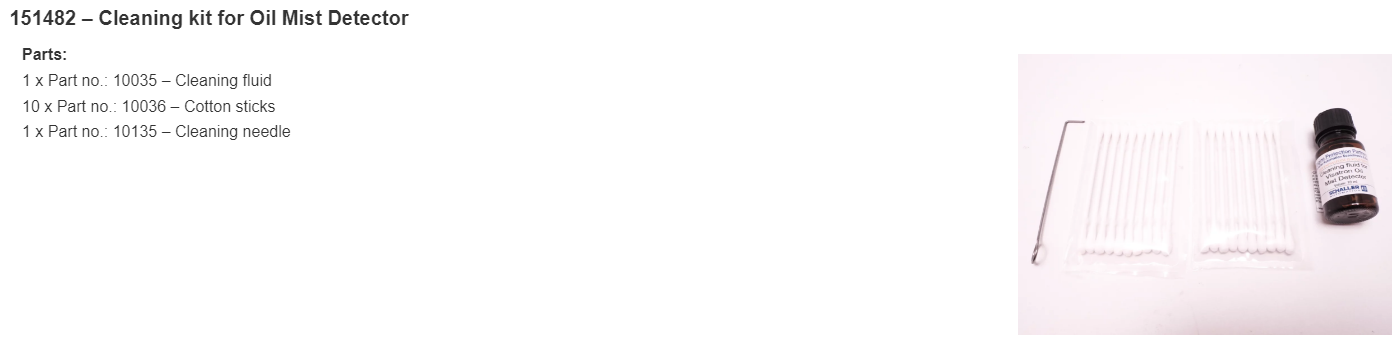

151482 – Cleaning kit for Oil Mist Detector

Parts:

1 x Part no.: 10035 – Cleaning fluid

20 x Part no.: 10036 – Cotton sticks

1 x Part no.: 10135 – Cleaning needle

151780 – Smoke test kit

Parts:

6 x Smoke ampulla

1 x Pump

1 x Connection tube for VN301plus

1 x Connection tube for inspection cover

1 x Connection tube for pipe system

100138 – Digital u-tube manometer for Oil Mist Detector

Parts:

1 x Digital u-tube manometer

1 x Connection hose

1x Quick connection adapter

Optional kits:

11072 – Test plate kit for functional test of Oil Mist Detector

Parts:

1 x 10% glass

1 x Test plate

1090-115 – Screw kit for repair

Parts:

1 x Plug 1/4″

2 x Plug 1/2″

4 x Screws for safety ring

2 x Screws for connection casing

2 x Washers for connection casing

Modification kits:

273440 – Pressure regulator modification kit

Parts:

1 x Pressure regulator

1 x Mounting plate

1 x Flexible tube

1 x Solid tube

1 x Engine wall connection
