VN 215/93 Kits

Pos:Part name:Part no.:Kit no.:
1Measuring head11901R, 11901EXPSold separately
2Scavenging air filter10042 – 365197100155-151488, 151490
3Inspection cover10798Sold separately
4Inspection cover gasket11180100155-151488, 151490
5Plug R1/4”10083100155
6Plug R1/4” gasket10082100155
7Fresh air restrictor10992100155-151488, 151490
8Pipe connection10430Sold separately
9Rubber sleeve10411100155-151488
10Lock plug10412100155-151488
11Clamp plate10409100155-151488
12Valve box10902 – 10902RSold separately
15Base plate10904 – 10904RSold separately
16Flexible bellow10023 – 365193100155-151488
17Mounting plate10991Sold separately
18Measuring head gasket10969100155-151488
19Fresh air bellow10990100155-151488
20Oil mist gasket10407100155-151488
21Oil return gasket10406100155-151488
22Valve box gasket10405 – 330721100155-151488
23Pipe connection10408Sold separately
24Connection socket10905Sold separately



Main components:

Oil mist detector VN 215/93

Part no.: 11900EXP – Exchange complete oil mist detector VN 215/93

  • Old/defect unit to be returned to Engine Protection Partner AS in repairable condition.



Part no.: 11900R –     Reconditioned complete oil mist detector VN 215/93

Measuring head VN 115/87 EMC

Part no.: 11901EXP – Exchange measuring head VN 215/93

  • Old/defect unit to be returned to Engine Protection Partner AS in repairable condition.

Part no.: 11901R –     Reconditioned measuring head VN 215/93

Main connection socket VN/87 EMC

Part no.: 10033 – Main connection socket VN/87 EMC

Maintenance kits:

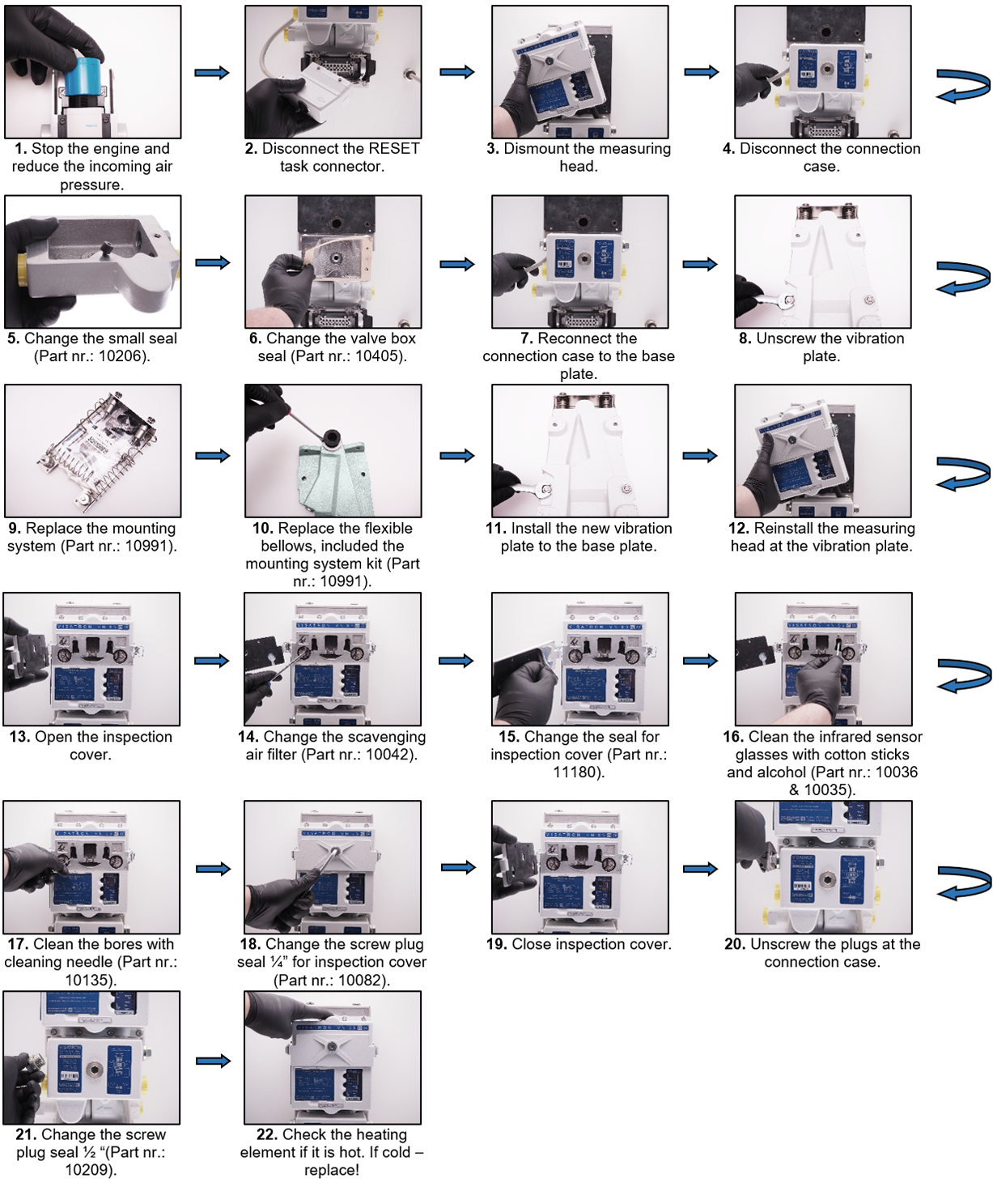

100155 – Yearly maintenance kit for VN 215/93

Kit to be used annually for maintenance.

Parts:

2 x Part no.: 10042 – Fresh air filter

2 x Part no.: 10992 – Fresh air restrictors

2 x Part no.: 10023 – Flexible bellow

1 x Part no.: 10969 – Measuring head gasket for VN/93

1 x Part no.: 11180 – Inspection cover gasket for VN/93

3 x Part no.: 10562 – Air-jet pump gasket

1 x Part no.: 10406 – Oil return gasket

1 x Part no.: 10407 – Oil mist gasket

1 x Part no.: 10990 – Fresh air bellow

2 x Part no.: 10411 – Rubber sleeve

5 x Part no.: 10412 – Lock plug

1 x Part no.: 10405 – Connection casing gasket

1 x Part no.: 10083 – Plug R1/4″

1 x Part no.: 10082 – Gasket for plug R1/4″

151490BU – Filter kit for VN/93 series

Parts:

10 x Part no.: 10042 – Fresh air filter

4 x Part no.: 10992 – Fresh air restrictors

2 x Part no.: 155005 – Pressure regulator filter (new type)

3 x Part no.: 10002 – Pressure regulator filter (old type)

3 x Part no.: 10003 – O-ring 9,0×4,5 NBR872

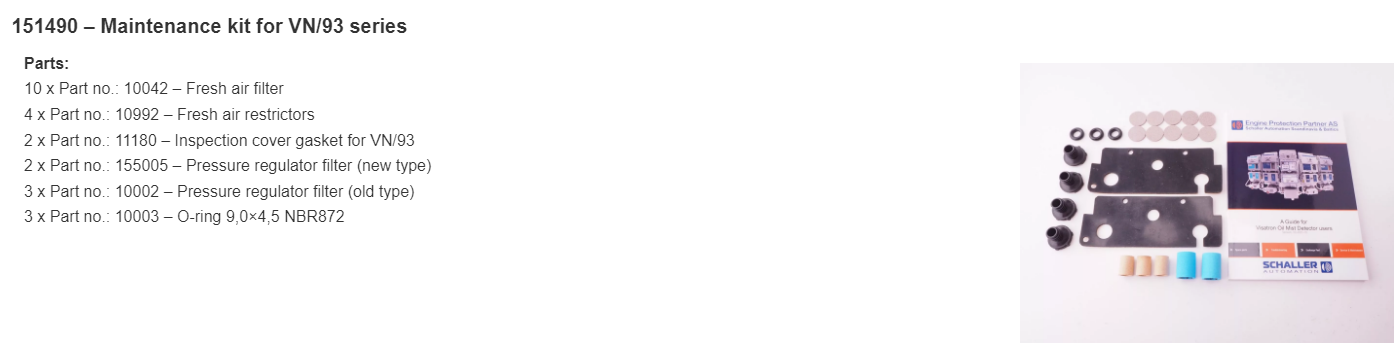

151490 – Maintenance kit for VN/93 series

Kit to be used on LNG vessels.

Parts:

10 x Part no.: 10042 – Fresh air filter

4 x Part no.: 10992 – Fresh air restrictors

2 x Part no.: 11180 – Inspection cover gasket for VN/93

2 x Part no.: 155005 – Pressure regulator filter (new type)

3 x Part no.: 10002 – Pressure regulator filter (old type)

3 x Part no.: 10003 – O-ring 9,0×4,5 NBR872

151482 – Cleaning kit for Oil Mist Detector

Parts:

1 x Part no.: 10035 – Cleaning fluid

20 x Part no.: 10036 – Cotton sticks

1 x Part no.: 10135 – Cleaning needle

151780 – Smoke test kit

Parts:

6 x Smoke ampulla

1 x Pump

1 x Connection tube for VN301plus

1 x Connection tube for inspection cover

1 x Connection tube for pipe system

100138 – Digital u-tube manometer for Oil Mist Detector

Parts:

1 x Digital u-tube manometer

1 x Connection hose

1 x Quick connection adapter

Optional kits:

11072 – Test plate kit for functional test of Oil Mist Detector

Parts:

1 x 10% glass

1 x Test plate

151488 – Spare part kit 9

Parts:

2 x Part no.: 10042 – Fresh air filter

2 x Part no.: 10992 – Fresh air restrictors

2 x Part no.: 10023 – Flexible bellow

1 x Part no.: 10969 – Measuring head gasket for VN/93

1 x Part no.: 11180 – Inspection cover gasket for VN/93

3 x Part no.: 10562 – Air-jet pump gasket

1 x Part no.: 10406 – Oil return gasket

1 x Part no.: 10407 – Oil mist gasket

1 x Part no.: 10990 – Fresh air bellow

2 x Part no.: 10411 – Rubber sleeve

5 x Part no.: 10412 – Lock plug

1 x Part no.: 10405 – Connection casing gasket

1 x Part no.: 10003 – O-ring 9,0×4,5 NBR872

1 x Part no.: 10004 – O-ring 8,0×2,572 NBR872

1 x Part no.: 10679 – O-ring 4,0×1,75 NBR70

1 x Part no.: 155005 – Pressure regulator filter (new type)

1 x Part no.: 10002 – Pressure regulator filter (old type)

Modification kits:

273440 – Pressure regulator modification kit

Parts:

1 x Pressure regulator

1 x Mounting plate

1 x Flexible tube

1 x Solid tube

1 x Engine wall connection
