VN 115/87plus Kits

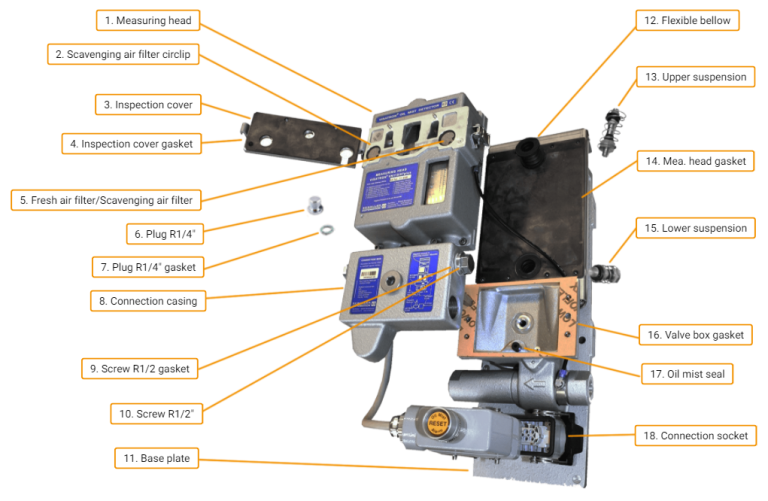

Pos:Part name:Part no.:Kit no.:
1Measuring head11651, 11651R, 11651EXPSold separately
2Scavenging air circlip10041 – 365198100150-151483, 151481
3Inspection cover10798 – 270412Sold separately
4Inspection cover gasket11070 – 355336100150-151483, 151481
5Scavenging air filter10042 – 365197100150-151483, 151481
6Plug R1/4”10083Sold separately
7Plug R1/4” gasket10082Sold separately
8Connection casing11652 – 11652RSold separately
9Screw R1/2” gasket10209 – 365280Sold separately
10Screw R1/2”10208Sold separately
11Base plate10604 – 10604RSold separately
12Flexible bellow10023 – 365193100150-151483
13Upper suspension10018 – 200211100150-151483
14Measuring head gasket10022 – 330482100150-151483
15Lower suspension10019 – 200212100150-151483
16Valve box gasket10045100150-151483
17Oil mist gasket10206 – 360136100150-151483
18Connection socket11004Sold separately


Main components:

Oil mist detector VN 115/87plus

Part no.: 11650EXP – Exchange complete oil mist detector VN 115/87plus

  • Old/defect unit to be returned to Engine Protection Partner AS in repairable condition.



Part no.: 11650R –     Reconditioned complete oil mist detector VN 115/87plus

Visatron VN 115/87plus

Measuring head VN 115/87plus

Part no.: 11651EXP – Exchange measuring head VN 115/87plus

  • Old/defect unit to be returned to Engine Protection Partner AS in repairable condition.



Part no.: 11651R –     Reconditioned measuring head VN 115/87plus

Main connection socket VN/87plus

Part no.: 11004 – Main connection socket VN/87plus

Maintenance kits:

100150-151483 – Service kit for VN 115/87 series

Parts:

2 x Part no.: 10042 – Fresh air filter

2 x Part no.: 10041 – Fresh air filter circlip

2 x Part no.: 10023 – Flexible bellow

1 x Part no.: 10022 – Measuring head gasket for VN/87

1 x Part no.: 10166 – Inspection cover gasket for VN/87

3 x Part no.: 10562 – Air-jet pump gasket

1 x Part no.: 10206 – Oil mist seal

2 x Part no.: 10018 – Upper suspension

2 x Part no.: 10019 – Lower suspension

1 x Part no.: 10405 – Connection casing gasket

1 x Part no.: 10003 – O-ring 9,0×4,5 NBR872

1 x Part no.: 10004 – O-ring 8,0×2,572 NBR872

1 x Part no.: 10679 – O-ring 4,0×1,75 NBR70

1 x Part no.: 155005 – Pressure regulator filter (new type)

1 x Part no.: 10002 – Pressure regulator filter (old type)

151481 – Filter kit for VN/87 EMC & plus

Parts:

10 x Part no.: 10042 – Fresh air filter

4 x Part no.: 10041 – Fresh air filter circlip

2 x Part no.: 10166 – Inspection cover gasket for VN/87

2 x Part no.: 155005 – Pressure regulator filter (new type)

3 x Part no.: 10002 – Pressure regulator filter (old type)

3 x Part no.: 10003 – O-ring 9,0×4,5 NBR872

151482 – Cleaning kit for Oil Mist Detector

Parts:

1 x Part no.: 10035 – Cleaning fluid

20 x Part no.: 10036 – Cotton sticks

1 x Part no.: 10135 – Cleaning needle

151780 – Smoke test kit

Parts:

6 x Smoke ampulla

1 x Pump

1 x Connection tube for VN301plus

1 x Connection tube for inspection cover

1 x Connection tube for pipe system

100138 – Digital u-tube manometer for Oil Mist Detector

Parts:

1 x Digital u-tube manometer

1 x Connection hose

1x Quick connection adapter

Optional kits:

11072 – Test plate kit for functional test of Oil Mist Detector

Parts:

1 x 10% glass

1 x Test plate

1090-115 – Screw kit for repair

Parts:

1 x Plug 1/4″

2 x Plug 1/2″

4 x Screws for safety ring

2 x Screws for connection casing

2 x Washers for connection casing

Modification kits:

273440 – Pressure regulator modification kit

Parts:

1 x Pressure regulator

1 x Mounting plate

1 x Flexible tube

1 x Solid tube

1 x Engine wall connection
