VN 115/87 EMC Kits
Maintenance kits:

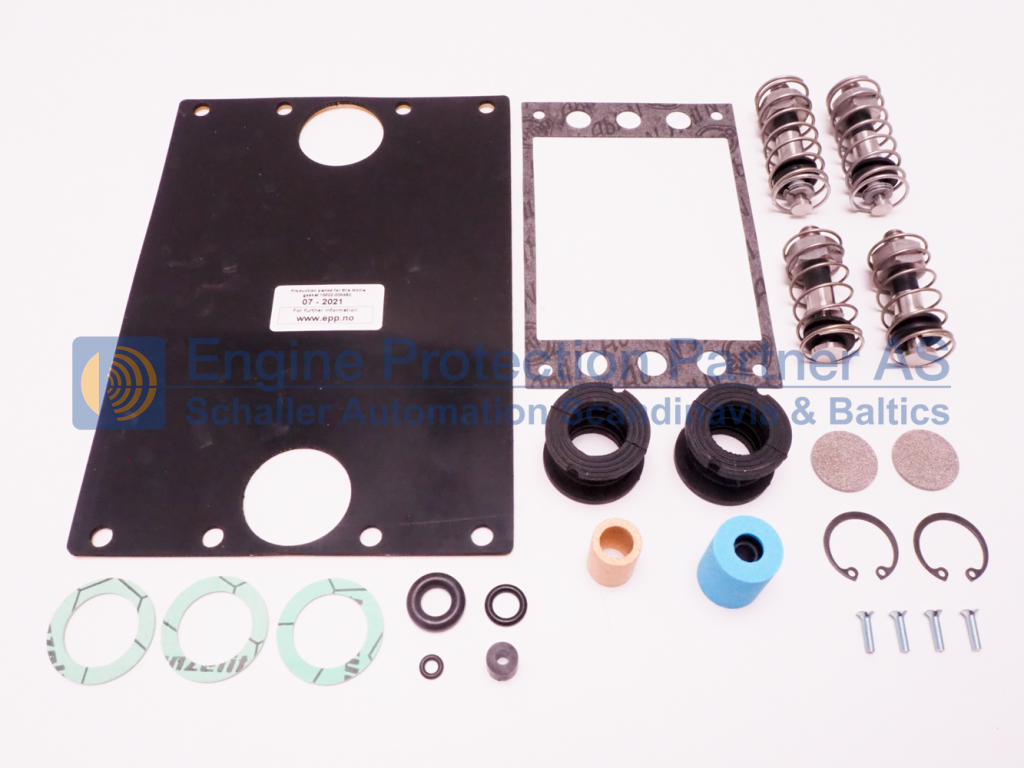

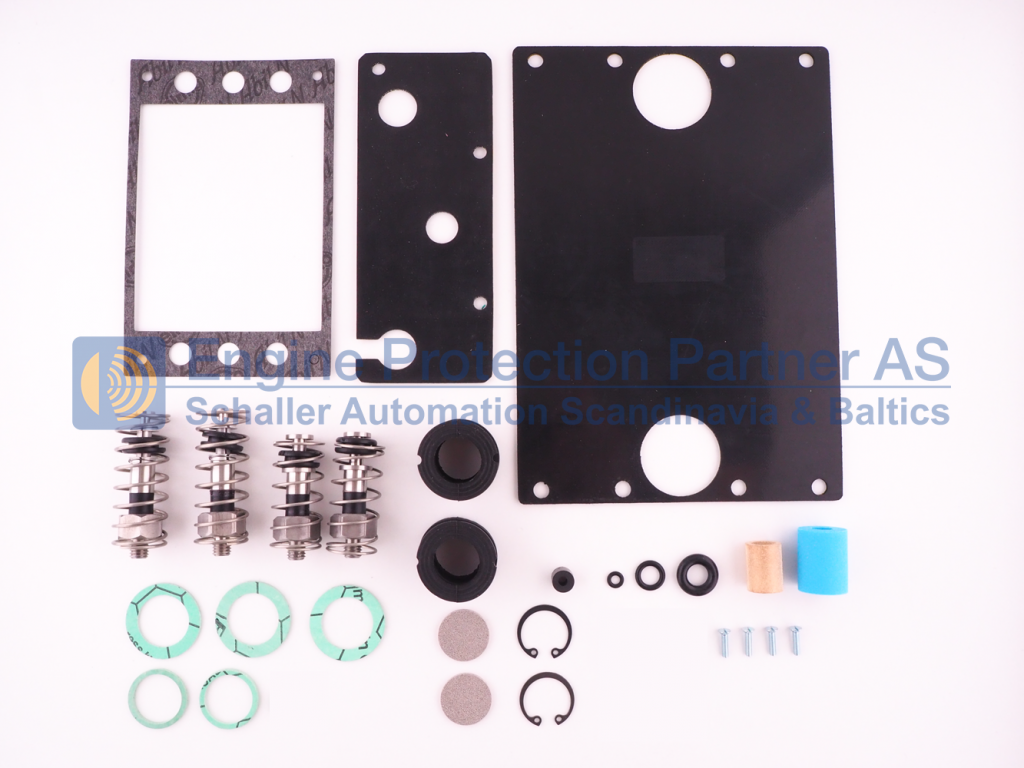

100150-151483 – Yearly maintenance kit for VN 115/87 series
Kit to be used annually for maintenance.
Parts:
2 x Part no.: 10042 – Fresh air filter
2 x Part no.: 10041 – Fresh air filter circlip
2 x Part no.: 10023 – Flexible bellow
1 x Part no.: 10022 – Measuring head gasket for VN/87
1 x Part no.: 10166 – Inspection cover gasket for VN/87
3 x Part no.: 10562 – Air-jet pump gasket
2 x Part no.: 10209 – Plug 1/2″ gasket
1 x Part no.: 10206 – Oil mist seal
2 x Part no.: 10018 – Upper suspension
2 x Part no.: 10019 – Lower suspension
1 x Part no.: 10405 – Connection casing gasket
1 x Part no.: 10003 – O-ring 9,0×4,5 NBR872
1 x Part no.: 10004 – O-ring 8,0×2,572 NBR872
1 x Part no.: 10679 – O-ring 4,0×1,75 NBR70
1 x Part no.: 155005 – Pressure regulator filter (new type)
1 x Part no.: 10002 – Pressure regulator filter (old type)

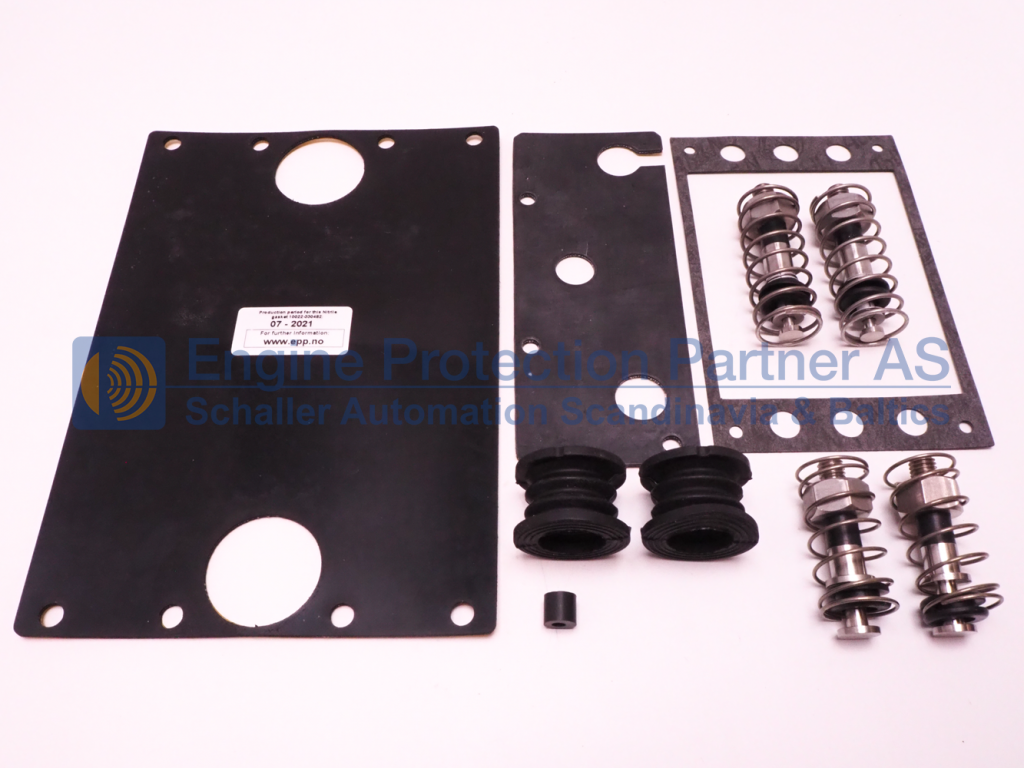

100150BU – Gasket & suspension kit for VN 115/87 series
Kit to be used during measuring head change. Replacing these parts are precautionary measure to avoid problems post-maintenance.
Parts:
2 x Part no.: 10023 – Flexible bellow
1 x Part no.: 10022 – Measuring head gasket for VN/87
1 x Part no.: 10166 – Inspection cover gasket for VN/87
1 x Part no.: 10405 – Connection casing gasket
2 x Part no.: 10018 – Upper suspension
2 x Part no.: 10019 – Lower suspension
1 x Part no.: 10206 – Oil mist seal
151481BU – Filter kit for VN/87 series
Parts:
10 x Part no.: 10042 – Fresh air filter
4 x Part no.: 10041 – Fresh air filter circlip
2 x Part no.: 155005 – Pressure regulator filter (new type)
3 x Part no.: 10002 – Pressure regulator filter (old type)
3 x Part no.: 10003 – O-ring 9,0×4,5 NBR872
Spare part kits:
151481 – Maintenance kit for VN/87 series
Parts:
10 x Part no.: 10042 – Fresh air filter
4 x Part no.: 10041 – Fresh air filter circlip
2 x Part no.: 10166 – Inspection cover gasket for VN/87
2 x Part no.: 155005 – Pressure regulator filter (new type)
3 x Part no.: 10002 – Pressure regulator filter (old type)
3 x Part no.: 10003 – O-ring 9,0×4,5 NBR872
Optional kits:
151482 – Cleaning kit for Oil Mist Detector
Parts:
1 x Part no.: 10035 – Cleaning fluid
10 x Part no.: 10036 – Cotton sticks
1 x Part no.: 10135 – Cleaning needle
11072 – Test plate kit for functional test of Oil Mist Detector
Parts:
1 x 10% glass
1 x Test plate
100138 – Digital u-tube manometer for Oil Mist Detector
Parts:
1 x Digital u-tube manometer
1 x Connection hose
1x Quick connection adapter
100139 – Adapter kit for u-tube manometer
Parts:
1 x Connection hose
1x Quick connection adapter
Modification kits:
273440 – Pressure regulator modification kit
Parts:
1 x Pressure regulator
1 x Mounting plate
1 x Flexible tube
1 x Solid tube
1 x Engine wall connection
